New Mini Ds211 Arm Nano Pocket Professional Portable Digital Oscilloscope Digital Dso 211 Ds 211 Ds0211 Ds0 211 With Mcx Probe Refreshing And Beneficial To The Eyes

New Mini Ds211 Arm Nano Pocket Professional Portable Digital Oscilloscope Digital Dso 211 Ds 211 Ds0211 Ds0 211 With Mcx Probe Refreshing And Beneficial To The Eyes

  • Model: PQJFPO-08001921-32864300414
  • 800 Units in Stock

$36.00 $18.00

Add to Cart:

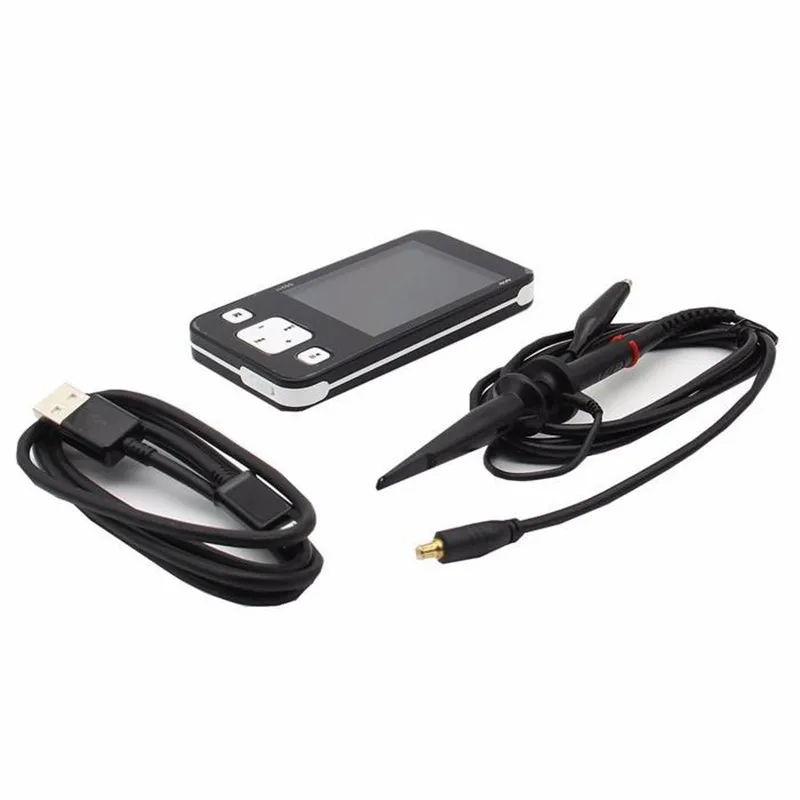

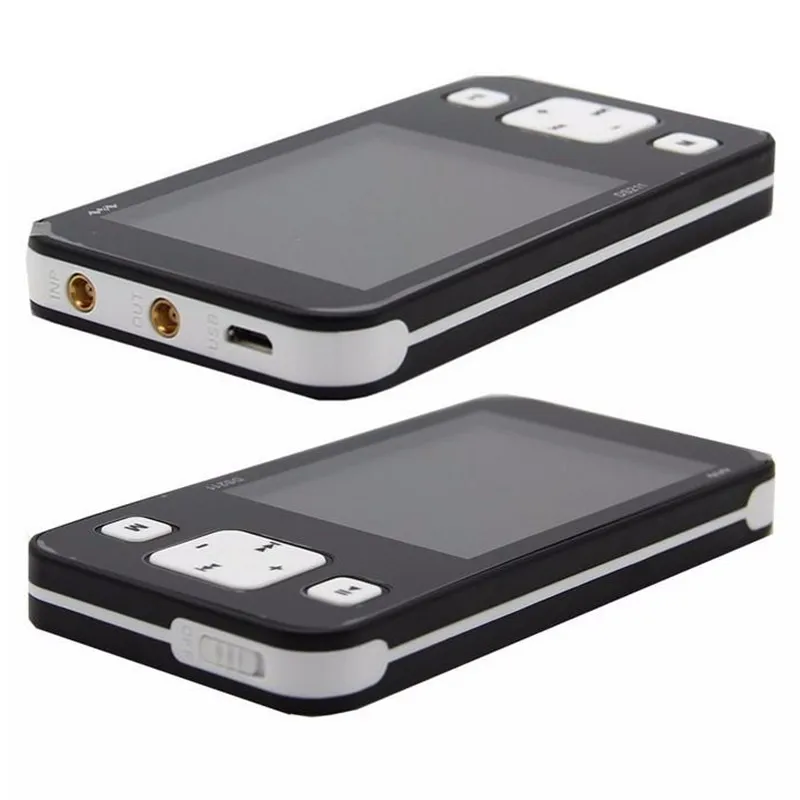

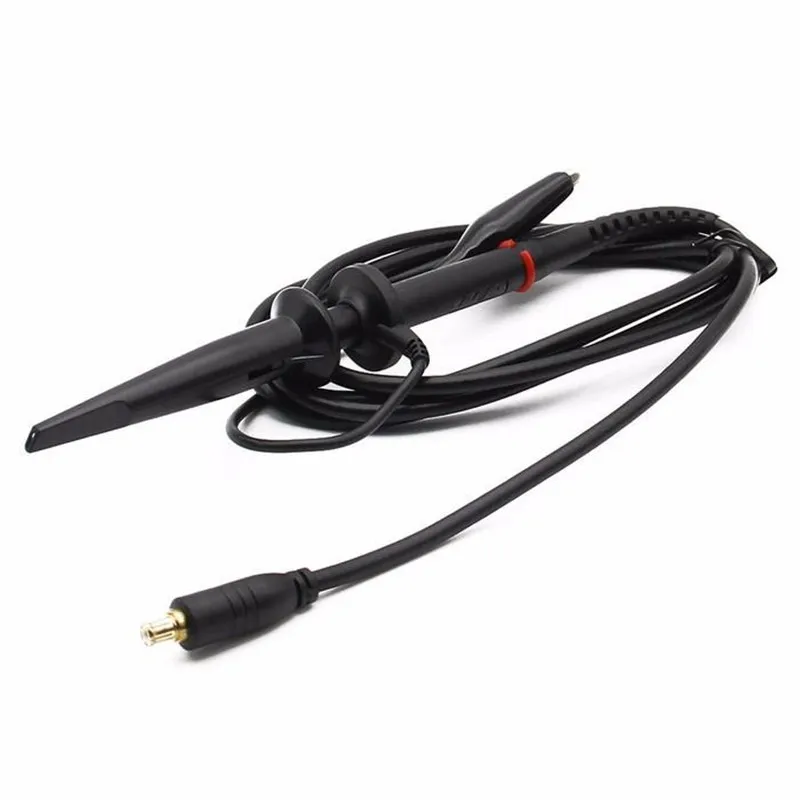

New MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe
New MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe
New MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe
New MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe
New MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe
New MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe
Item specifics

  • Max Waveform Capture Rate:500,000wfm/s
  • Model Number:DS211 is the update version of DS201
  • Record Length: Storage 8MB USB flash disk memory
  • Brand Name:Docreate
  • DIY Supplies:Electrical
  • Band Width:Less than 60MHz
  • IS Battery Demountable:No
  • Display resolution:320*240 Pixels
  • Digital Channels:2
  • Display Size:2.9 Inches & Under
  • Real Time Sampling Rate:1MSa / s
  • osciloscopio digital portatil:osciloscopio usb / usb oscilloscopes
  • MCU: STM32F103VC:ADC: MCU internal ADC
  • Analog Bandwidth: 200KHz:Channels: 1 Analog channel+1 Operation channel
  • Max Sample Rate: 1MSa/s:Max Sample Memory Depth: 8K
  • Analog Input Impedance: Above 500 :Horizontal sensitivity: 1uS/Div~2S/Div(1-2-5sequence step)
  • Coupling: DC/AC:Vertical Sensitivity: 20mv/Div~10V/Div(1-2-5sequence step)
  • Math Waveforms: -A, RecA, A+ RecA:Synchronous Mode: Ascend/Descend Edge Trigger Mode
  • Synchronous : Auto, Normal, Single, Scan:Inbuilt Signal Generator: Sine/Square/Triangle/Sawtooth wave
  • USB Port: MicroUSB:Open Source: Application layer Open-Source
  • Certifications: CE/FCC:Battery: 500mAh (Bulid-in)

Model:PQJFPO-08001921-32864300414
Products Name:New MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe
Products Categoris:Tools/Measurement & Analysis Instruments/Electronic Measuring Instruments/Oscilloscopes
short description:Cheap Oscilloscopes, Buy Directly from China Suppliers:New MINI DS211 ARM Nano Pocket Professional Portable Digital Oscilloscope Digital DSO 211 DS 211 DS0211 DS0 211 with MCX Probe Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale✓Easy Return.
